IP65 15 Inch Industrial Touch Screen Panel Display Embedded / Wall Mounted

Brand Name : E.hanli

Model Number : HLZ-Z150Z

Certification : CE,FCC

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : According to Quantity

Delivery Time : According to Quantity

Packaging Details : Wooden Box

Brightness : 300 cd/m2

Contrast Ratio : 1000:1

IP Rating : IP65

Interface : VGA/HDMI

Mounting : VESA/Panel/Rack

Resolution : 1024x768

Response Time : 5ms

Size : 15-inch

Touch Durability : 50 million touches

Touch Technology : Projected Capacitive

Viewing Angle : 89/89/89/89

Warranty : 2 years

Contact Now

HLZ-X150Z 15 "Industrial Touch Screen Display/Industrial Touch Screen Panel /Embedded/ Wall Mounted

Name: Industrial Touch Screen Monitor Touch Screen: 4-wire Resistance Screen
Interface: DC12V(Aviation Plug)； VGA ； USB Size: 372mm(length)* 279mm(width)* 46mm(thickness)
Industrial Power Supply: 12V@5A Industrial Adapter Working Temperature: 0～60℃
High Light:

industrial touch screen display

,

industrial touch screen panel

HLZ-X150Z 15" Touch industrial display

Features:

■ Aluminum alloy sandblasted panel

■ Waterproof grade IP65 for panel

■ Aviation plug power input

■ Resistance touch screen, OEM capacitive screen

■ Various installation options

Specification parameters Optional configuration
Front panel Aluminum alloy panel,silvery；OSD menu Optional black or other colors
Back chassis 1.2mm Steel plate, Silver； Optional industrial black or other colours
LCD screen 15 "TFT, LED backlight; resolution: 1024 * 768; lattice: 0.297 * 0.297; maximum color: 16.2M; brightness: 300cd / ㎡; contrast: 1000:1; response speed: 35ms; MTBF: 50000h viewing angle: (+ 85° - 85°) (+85 ° -85 °);
Touch screen 4-wire resistance screen Customizable capacitor screen
Interface DC12V(Aviation plug)； VGA； USB 　

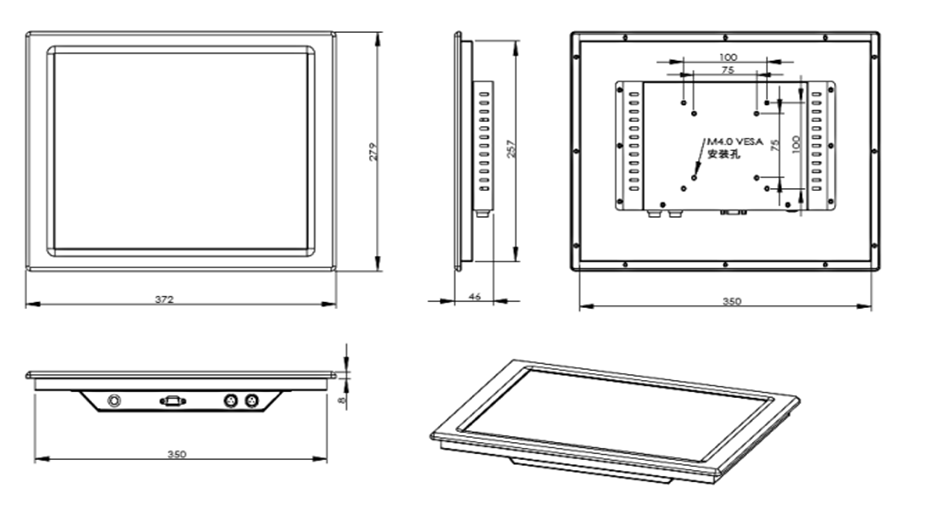

Size 372mm(length)* 279mm(width)* 46mm(thickness) Weight 4.5/5KG
Industrial Power Supply 12V@5A industrial adapter
Installation mode Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature 0～60℃ Storage temperature -10～65℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
