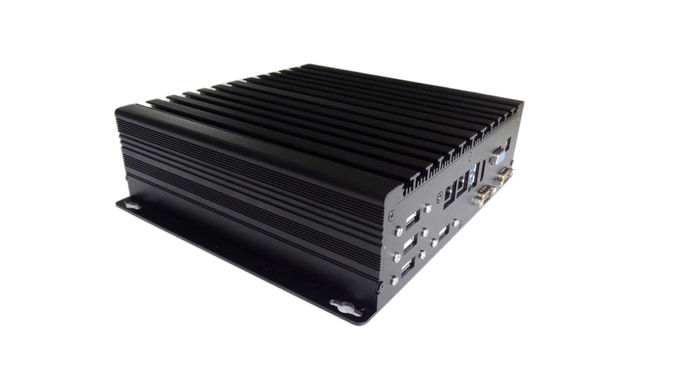

EPIC06 Fanless IPC Industrial PC Board Pasted 6 Generation I3 I5 I7 U Series CPU

Brand Name : E.hanli

Model Number : EPIC06

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : motherboard 120000 pieces / month ; IPC 6000 sets / month

Delivery Time : According to Quantity

Packaging Details : Wooden Box

CPU : Intel Atom

Connectivity : Wi-Fi, Bluetooth

Cooling System : Fanless

Display : HDMI

Form Factor : Fanless Box PC

Graphics : Integrated

OS : Windows 10

Ports : 2x USB 3.0, 2x USB 2.0, 1x HDMI, 1x Ethernet

Power Supply : External

RAM : 4GB

Storage : 256GB

Contact Now

EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU

Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: 1 Hard Disk Rack, Supporting 1 2.5 Inch Hard Disk
Adapt Motherboard: Special Board Sticks The Motherboard Of 6th And 7th Generation CPU CPU/GPU: Intel I3 6100U
Memory: 4G DDR3 Hard Disk: 256G MSATA
High Light:

fanless embedded system

,

fanless industrial computer

MIS-EPIC06 All-aluminium fan-free embedded IPC, board-pasted 6-generation i3/i5/i7 U series CPU, dual-network 6-series 1

Features:

■ All-aluminium toothed fan-free design, fully sealed

■ Supporting 6 Generation I3/I5/I7 U Series CPUs

■ Double Intel Gigabit Port, 6 Series 10USB

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

■ Flexible configuration

Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasting oxidation black Other colours can be customized
Front Switch with power indicator; 4COM; 4USB2.0, GPIO Customizable LOGO or more serial or parallel ports
Back DC 12V; VGA + HDMI display; 2USB3.0; 2RJ45 Gigabit Network Port Line out; 2COM; 4USB Two antenna apertures can be customized for 4G or WIFI
Hard disk rack 1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard Special board sticks the motherboard of 6th and 7th generation CPU
CPU/GPU Intel i3 6100U Optional board sticker i5 6200U or i7 6500U
Memory 4G DDR4 Optional 8G/16G DDR4 notebook memory
Hard disk 256G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size 226*200*64.5mm Net/Gross Weight 3.5/4KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram 　
