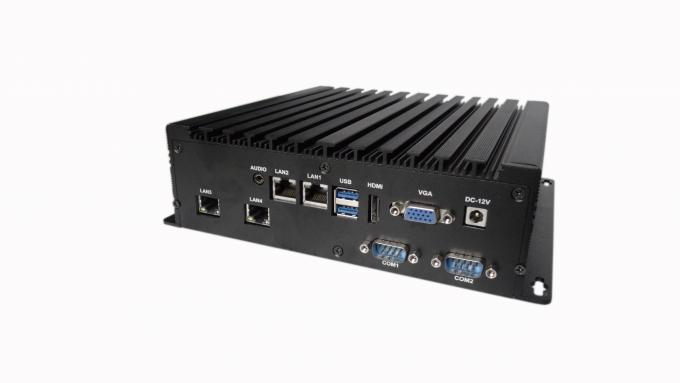

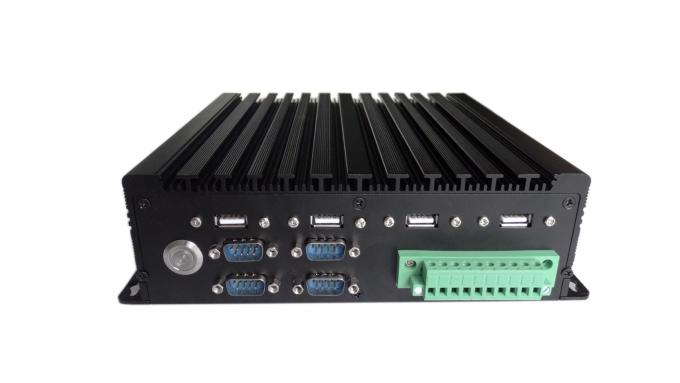

Embedded Fanless Box PC / IPC Industrial Computer CPU 4 Network 6 Series 6USB

  • 1
  • 2

Brand Name : E.hanli

Model Number : EPIC06-4L

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : motherboard 120000 pieces / month ; IPC 6000 sets / month

Delivery Time : According to Quantity

Packaging Details : Wooden Box

Audio : Realtek ALC662

Display : VGA, HDMI

Ethernet : 2 x Intel I211AT

Expansion Slots : 1 x Mini-PCIe, 1 x mSATA

Graphics : Intel HD Graphics

I/O Ports : 2 x USB 3.0, 2 x USB 2.0, 2 x COM, 1 x LPT, 1 x PS/2

Memory : DDR3L SO-DIMM, Max. 8GB

Operating Temperature : 0°C ~ 40°C

Power Input : DC 9V~24V

Processor : Intel Celeron I5 6200U

Product Name : Fanless Box PC

Storage : 2.5” SATA HDD/SSD, mSATA SSD

Wireless : Wi-Fi 802.11 b/g/n

Contact Now

EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB

Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: 1 Hard Disk Rack, Supporting 1 2.5 Inch Hard Disk
Adapt Motherboard: Special Board Sticks The Motherboard Of 6th And 7th Generation CPU CPU/GPU: Intel I5 6200U
Memory: 8G DDR4 Hard Disk: 128G MSATA
High Light:

fanless embedded system

,

fanless industrial computer

MIS-EPIC06-4L All-aluminium fan-free embedded IPC, board-pasted 6-generation i3/i5/i7 U series CPU, 4-network 6-series 6USB

Features:

■ All-aluminium toothed fan-free design, fully sealed

■ Supporting 6 Generation I3/I5/I7 U Series CPUs

■ Four Intel Gigabit Port, 6 Series 6USB

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

■ Flexible configuration

Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasting oxidation black Other colours can be customized
Front Switch with power indicator; 4COM; 4USB2.0, GPIO Customizable LOGO or more serial or parallel ports
Back DC 12V; VGA + HDMI display; 2USB3.0; 2RJ45 Gigabit Network Port Line out; 2COM; 4USB Two antenna apertures can be customized for 4G or WIFI
Hard disk rack 1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard Special board sticks the motherboard of 6th and 7th generation CPU
CPU/GPU Intel i5 6200U Optional board paste I3 6100U or i7 6500U
Memory 8G DDR4 Optional 8G/16G DDR4 notebook memory
Hard disk 256G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size 226*200*64.5mm Net/Gross Weight 2.5/3KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram 　

Embedded Fanless Box PC / IPC Industrial Computer CPU 4 Network 6 Series 6USB

Embedded Fanless Box PC / IPC Industrial Computer CPU 4 Network 6 Series 6USB
